Servos

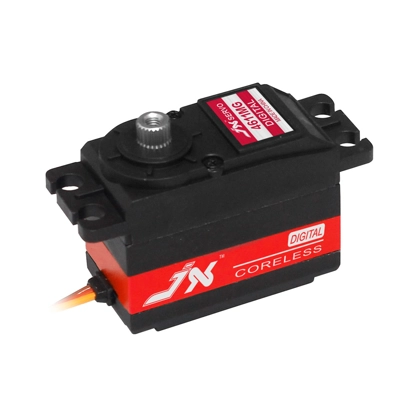

Jx servo 4611

In Stock jxr

FREE SHIPPING ON THIS ITEM Dead band: 1μs Control System: +Pulse Width Control Working frequence: 1520μs / 330hz Operating Voltage: DC4.8 6 Motor: coreless motor Operating Temperature Range: -10 to + 60 C Operating Speed (4.8V): 0.14sec/60 Operating Speed (6V): 0.12sec/60 Stall Torque (4.8V): 9.68kg.cm (134.42oz/in) Stall Torque (6V): 12.1kg.cm (168.03oz/in) Potentiometer Drive: Direct Drive Dimensions: 40.5X20.5X31mm /1.59 X0.80X1.22 in Weight: 46 g (1.62oz) Connector Wire Length: JR 265 mm (10.43in) Bearing: 2BB

or express checkout
Description

FREE SHIPPING ON THIS ITEM

Dead band: 1μs
Control System:  +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage:  DC4.8~6
Motor: coreless motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (4.8V): 0.14sec/60°
Operating Speed (6V): 0.12sec/60°
Stall Torque (4.8V): 9.68kg.cm (134.42oz/in)
Stall Torque (6V): 12.1kg.cm (168.03oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 40.5X20.5X31mm /1.59 X0.80X1.22 in
Weight: 46 g (1.62oz)
Connector Wire Length: JR  265 mm (10.43in)
Bearing: 2BB

Specification
Title Jx servo 4611
Category Servos
SKU jxr
Condition new
