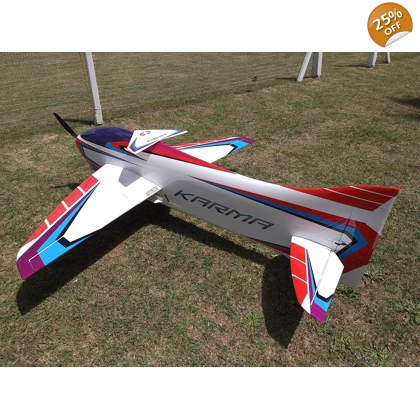

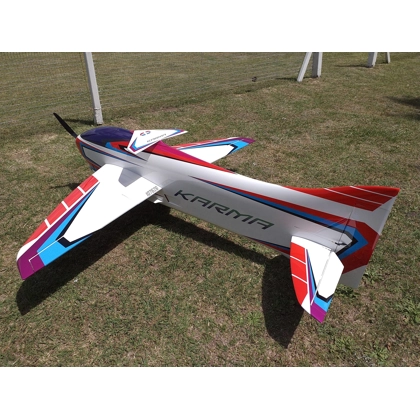

Product Description
This is a new monoplane for schedules P & F 23.
Include composite fuselage ,rudder, T canalizer, landing gear and wheel spats.
Only part in balsa are wing and tailplane.
Great finish on all parts and low weight in what is a very complete kit with very little work required to get it flying.
Karma V2 Features
Designed for Mariano Gostanian Elliptical shaped wing Elliptical shaped horizontal stabilizer Composite fuselage fully painted in a beautiful color scheme Covered flying surfaces with unmatched quality Plug-in wings, and stabs with carbon fiber tube fiberglass rudder T can fiberglass
Made in Argentina
Levels of Completion
New Karma is available in ARC and ARF versions ARC (almost ready to cover) a white gel coat fuselage with sheeted flying surfaces ready to accept your favorite iron on covering and fuselage paint. ARF (almost ready to fly) in our standard color, including accessories bag Special: You pick the colors and layout and we will process it for you.
Color Schemes Mariano Gostanian color scheme (standard color)
Available on a limited basis, we produce a small run of Custom painted & Custom covered
Karma Specifications
Dimensions
Length: 74.80 in (1990 mm)
Wingspan: 73.62 in (1830 mm)
Weight
Net Weight: (2400 grams) Included landing gear and whell pants
Gross Weight: (4800-5000 grams)
Construction
Fuselage rudder and T canalizer: Vacuum Fiberglass, Divinycell, full painted
Wings: Balsa built-up, covered film
Horizontal Stabilizer: Balsa built-up, covered film
Power
Plettenberg Advance 30/10
Adverrum Drive system
Available for Contra drive
ESC: 80 HV or above
Spinner Size: 90 mm
Propeller recomended
Falcon / Mejlik 21 x 14 (2 blade)
Falcon / Mejlik 21x13 (2 blade)
Included Hardware
Lightweight wheels with axles
Wheel pants
Carbon fiber main landing gear
Tail wheel assembly
Stab adjusters
Wing adjusters
Control horns (6)
Battery tray with carbon rods
Servo rudder tray
Wing Tube (carbon fiber)
Stab Tube (carbon fiber)
Servos (required)
Ailerons: (2) standard size
Elevator: (2) mini size
Rudder: (1) standard size
Setups & Tips
Wing Incidence: + 0.8 degree
Stab Incidence: 0 degreesT
T can fixed incidence
