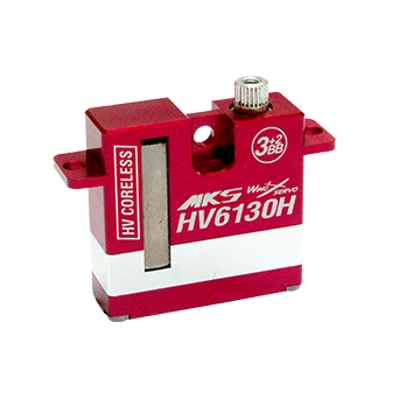

MKS HV6130H servo

In Stock mks6130h

HV6130 No. S0022009 Torque: 6.0 kg-cm (6.0V) / 7.6 kg-cm (7.4V) / 8.1 kg-cm (8.2V) Speed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) Weight: 22.5 g Dimension 30 x 10 x 29.8 mm Working Voltage 3.5 8.4 V DC Volt (2S Lipo un-regulated) Working frequency 1520μs / 333Hz Dead Band 0.001 ms (Default) Bearing : 3x ball bearing + 2x Jewel bearing Motor Coreless Motor Gear Metal Alloy Gear Current Draw: 1.2A@ 6.0V / 1.4A@ 7.4V / 1.6A@ 8.2V Bulit-In Safe System safe guards your model.

or express checkout
Description

HV6130

MKS HV6130 Wing ServoMKS HV6130 Wing ServoMKS HV6130 Wing Servo

No. S0022009

MKS HV6130 Wing ServoTorque: 6.0 kg-cm (6.0V) / 7.6 kg-cm (7.4V) / 8.1 kg-cm (8.2V)

MKS HV6130 Wing ServoSpeed: 0.14 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)

MKS HV6130 Wing ServoWeight: 22.5 g

Dimension:30 x 10 x 29.8 mm
Working Voltage:3.5~8.4 V DC Volt (2S Lipo un-regulated)
Working frequency:1520μs / 333Hz
Dead Band:0.001 ms (Default)
Bearing : 3x ball bearing + 2x Jewel bearing
Motor:Coreless Motor
Gear:Metal Alloy Gear
Current Draw: 1.2A@ 6.0V / 1.4A@ 7.4V / 1.6A@ 8.2V

MKS HV6130 Wing Servo

Bulit-In Safe System safe guards your model.

Specification
Title MKS HV6130H servo
Category Servos
SKU mks6130h
Condition new
