Servos MKS

MKS HV69

In Stock mkshv69

MKS HV69 Super Torque Mini Servo Torque (4.8V): 6.0 kg-cm / 83.3 oz-in Torque (6.0V): 7.5 kg-cm / 104.2 oz-in Torque (7.4V): 9.2 kg-cm / 127.8 oz-in Torque (8.2V): 10.2 kg-cm / 141.7 oz-in Speed: 0.17 s (4.8V) / 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) Weight: 21 g (0.74 oz) Dimension 29 x 13 x 28.7 mm Specification: Torque (kg-cm) 6.0 (4.8V) / 7.5 (6.0V) / 9.2 (7.4V) / 10.2 (8.2V) Torque (oz-in) 83.3 (4.8V) / 104.2 (6.0V) / 127.8 (7.4V) / 141.7 (8.2V) Speed 0.17 s (4.8V) / 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V) Working Voltage 3.8V 8.4 V DC Volt (2S Lipo un-regulated) Working Frequency 1520μs / 333Hz Dead Band 0.001 ms (Default) Bearing 2 Ball Bearing Gear Metal Alloy Gear Motor Coreless Motor

or express checkout
Description

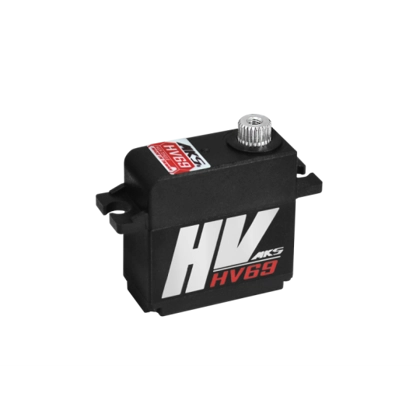

MKS HV69 Super Torque Mini Servo



Torque (4.8V): 6.0 kg-cm / 83.3 oz-in

Torque (6.0V): 7.5 kg-cm / 104.2 oz-in

Torque (7.4V): 9.2 kg-cm / 127.8 oz-in

Torque (8.2V): 10.2 kg-cm / 141.7 oz-in

Speed: 0.17 s (4.8V)  /  0.13 s (6.0V)  /  0.11 s (7.4V)  /  0.10 s (8.2V)

Weight:   21 g  (0.74 oz)

Dimension:29 x 13 x 28.7 mm



Specification:



  • Torque (kg-cm) 6.0 (4.8V) / 7.5 (6.0V) / 9.2 (7.4V) / 10.2 (8.2V)
  • Torque (oz-in) 83.3 (4.8V) / 104.2 (6.0V) / 127.8 (7.4V) / 141.7 (8.2V)
  • Speed 0.17 s (4.8V) / 0.13 s (6.0V) / 0.11 s (7.4V) / 0.10 s (8.2V)
  • Working Voltage 3.8V~8.4 V DC Volt (2S Lipo un-regulated)
  • Working Frequency 1520μs / 333Hz
  • Dead Band 0.001 ms (Default)
  • Bearing 2* Ball Bearing
  • Gear Metal Alloy Gear
  • Motor Coreless Motor

Popular choice for twin servo elvators in 2m FAI monoplanes

Specification
Title MKS HV69
Brand MKS
Category Servos
SKU mkshv69
Condition new
HS Code HV69
Country of Origin China
