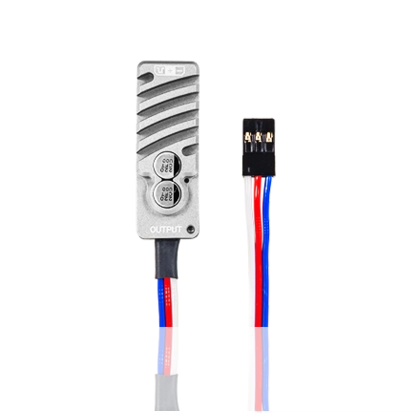

PowerBox V-Regulator 5.3V 3A Voltage Regulator PB-5515
The V-Regulator is a compact, high-performance voltage regulator which is ideal for any model where standard servos are to be operated in conjunction with a Lithium battery. In this way fairly small to medium-sized fixed-wing model aircraft and helicopters can be equipped, or re-equipped, with modern battery technology.
The signal wire is looped through from the input to the output, which means that even a single 6V servo can be operated in a model fitted with a high-voltage system.
A further application is for those electronic ignition systems whose maximum power supply voltage is limited. The regulated output voltage ensures that servos give a constant performance.
The unit effectively filters out servo feedback currents.
Features
Available with 5.3V or 6.0V regulated output
Constant current up to 3A - according to the cooling
Peak current up to 20A (< 10s)
Large scale milled aluminum heatsink
Fits best for ignitions, small helicopters and smaller fixed-wing models with up to 8 servos
For all applications with a maximum input voltage of 5.3V or 6.0V
Super slim dimensions for small fuselages
The V-Regulator is a compact, high-performance voltage regulator which is ideal for any model where standard servos are to be operated in conjunction with a Lithium battery. In this way fairly small to medium-sized fixed-wing model aircraft and helicopters can be equipped, or re-equipped, with modern battery technology.
The signal wire is looped through from the input to the output, which means that even a single 6V servo can be operated in a model fitted with a high-voltage system.
A further application is for those electronic ignition systems whose maximum power supply voltage is limited. The regulated output voltage ensures that servos give a constant performance.
The unit effectively filters out servo feedback currents.
Features
Available with 5.3V or 6.0V regulated output
Constant current up to 3A - according to the cooling
Peak current up to 20A (< 10s)
Large scale milled aluminum heatsink
Fits best for ignitions, small helicopters and smaller fixed-wing models with up to 8 servos
For all applications with a maximum input voltage of 5.3V or 6.0V
Super slim dimensions for small fuselages
Product Code: Nyq2bd7
Brand: Powerbox
Product Condition: New
