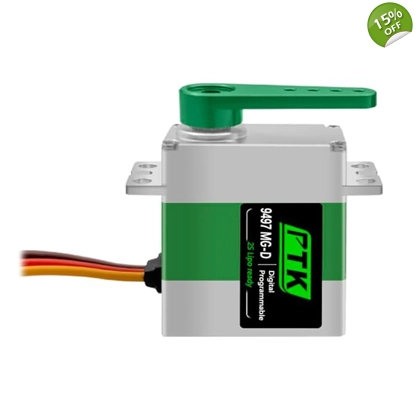

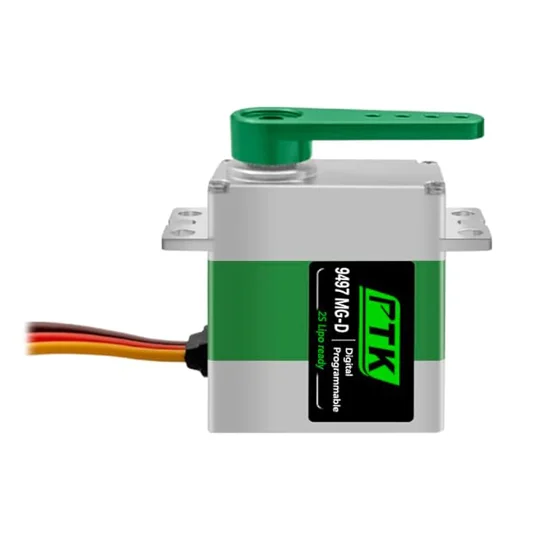

Pro-Tronik PTK 9497 MG-D 8.6kg/0.08s 19,2g Micro Digital Servo Coreless

Pro-Tronik Digital 9497 MG-D Ultra high end servo specially developed for use in gliders or any other application requiring power, precision and reliability.The 9497 MG-D is the most powerful servo on the market in its category.Everything in this servo has been thought to offer the best performance.Its thinness allows it to be mounted in composite glider wings.High quality electronics, potentiometer and motor. Metal gears mounted on two bearings combining robust reliability with precision.

Pro-Tronik PTK 9497 MG-D 8.6kg/0.08s 19,2g Micro Digital Servo HV Coreless

Power ultra high-end specially designed for use in gliders or any other application requiring power, precision and reliability.

The 9497 MG-D is the powerful servo in its category. Everything in this servo has been designed to offer the best performance. Its thin enough to nmount in composite glider wings. Electronics, motor potentiometer and high quality. Metal gears mounted on two bearings combine robustness, precision and reliability.

• Digital
• Programmable (programming card will be available on PC)
• "2S Lipo Ready": optimized performance whether in 4.8V, 7.4V or 6V. HV for all!

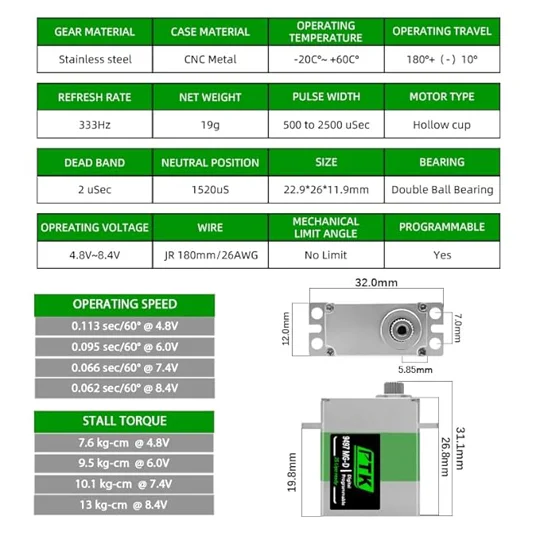

Technical specifications

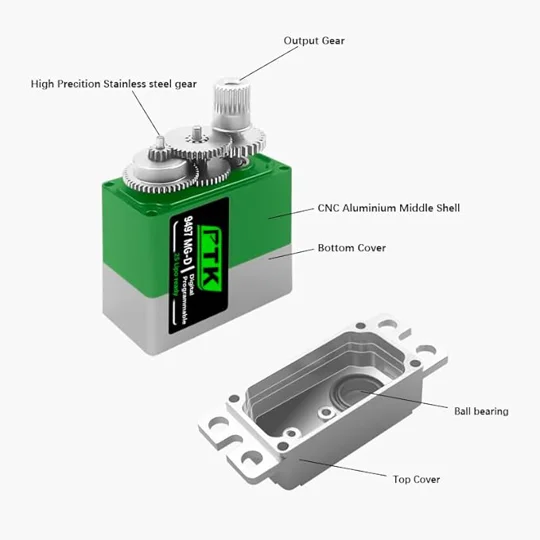

• Gears : Metal
• Gears Play : very low
• Ball bearings :  2pcs
• Motor : Coreless
• Potentiometer : High End "NOBLE"
• Weight : 19,2g / 0,68oz

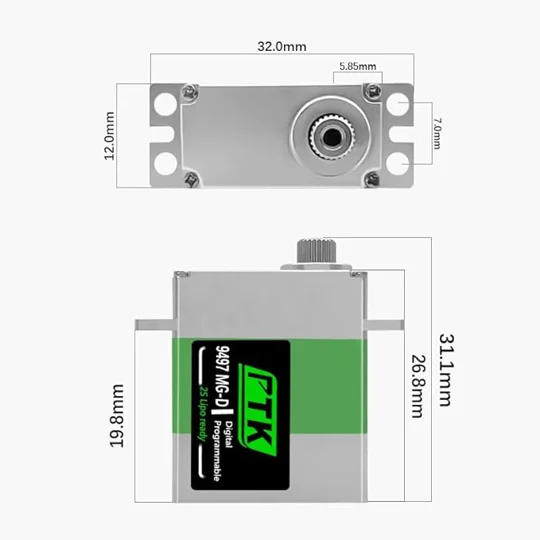

• Dimensions : 22.9 x 26 x 11.9 mm
• Speed/Torque@ 4,8V : 0,11 sec/60° 5,4kg/cm
• Speed/Torque@ 6.0V : 0,09 sec/60° 6,8kg/cm
• Speed/Torque@ 7.4V : 0,08 sec/60° 8,6kg/cm
• Input Voltage : 4.8V - 8.4V
• Harness length : 225mm
• Compatibility : Universal connector
• Dead band : 1μs
