G160 6330-250kV Brushless Motor from Tomcat - DY-TC-G-6330-KV250 The Tomcat class are high quality brushless motors made using Japanese bearings, considered some of the finest bearings in the world. Tomcat motors are manufactured from CNC blocks unlike cheaper motors that are made from molds. All Tomcat motors come with the necessary mounting hardware, tools, x-plate mount and compression collets in addition to the bolt-on propeller collet. If you are looking for a reliable brushless motor for your 160-size aircraft that you can trust, the Tomcat G160 is your solution. FEATURES: CNC-machined for high end precision and quality Each Tomcat motor uses the highest quality Japanese bearings All necessary mounting hardware is included INCLUDES: Tomcat G160 6330-250kV Brushless Motor Mounting hardware X-plate mount Compression collets Bolt-on propeller collet PRODUCT SPECIFICATIONS: Type G160 Series 6330-250kV Brushless Motor KV (RPMs per Volt) 250 No Load Current 2.3A @ 10V Resistance 0.0...

Description

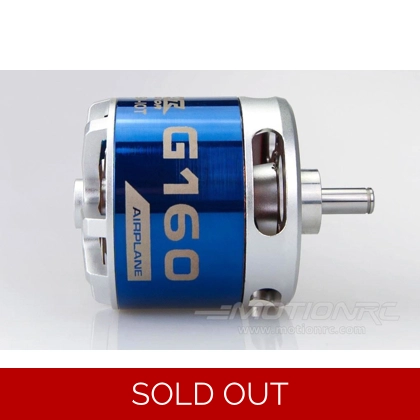

G160 6330-250kV Brushless Motor from Tomcat - DY-TC-G-6330-KV250

The Tomcat class are high quality brushless motors made using Japanese bearings, considered some of the finest bearings in the world.  Tomcat motors are manufactured from CNC blocks unlike cheaper motors that are made from molds. All Tomcat motors come with the necessary mounting hardware, tools, x-plate mount and compression collets in addition to the bolt-on propeller collet.  If you are looking for a reliable brushless motor for your 160-size aircraft that you can trust, the Tomcat G160 is your solution.

FEATURES:

  • CNC-machined for high end precision and quality
  • Each Tomcat motor uses the highest quality Japanese bearings
  • All necessary mounting hardware is included

INCLUDES:

  • Tomcat G160 6330-250kV Brushless Motor
  • Mounting hardware
  • X-plate mount
  • Compression collets
  • Bolt-on propeller collet


PRODUCT SPECIFICATIONS:

Type

G160 Series 6330-250kV Brushless Motor

KV (RPMs per Volt)

250

No Load Current

2.3A @ 10V

Resistance 0.031 ohms

Watts

Up to 2,800

Continuous Current

62A

Max Burst Current

80A, 10 seconds

Cells

9S-to-10S LiPo

Recommended Props

18x8 to 20x10

Slots, Poles

12, 14

Diameter

63.2mm

Shaft Diameter 8.0mm

Weight

682g

Brushless ESC

80A

Specification
Title Tomcat 160
Category Brushless motors
SKU TC 160
Condition new
