Kontronik Koby ESC

KOBY
The KOBY series is the basic KONTRONIK Drives brushless ESCs. Following the successful JAZZ series, the KOBY guarantees the highest performance with the familiar KONTRONIK Drives reliability.

KOBY ESCs feature a powerful 3 A continuous current BEC that can easily handle peaks of up to 10 A. The output voltage of the synchronized BEC is adjustable from 5.6 V to 8 V.





Easy operation of the KOBY is guaranteed by the familiar standardized KONTRONIK Drives mode programming. Set up is nearly plug & play with most important general parameters preset in selectable glider mode, motor mode and heli mode. Of course the KOBY comes equipped with the legendary KONTRONIK Drives sensitive RPM control.

One of the innovative aspects of KOBY ESCs is their online updateability. The KONTRONIK ProgUNIT is not only the programming unit for ESCs; it is also the PC interface for online-updating KONTRONIK ESC software.

KOBY 70 LV

2-6 S LiPo, 6-25 V
70 A continuous current
80 A peak current
BEC 3 A continuous current
BEC 10 A peak current
42 g without cable
60 g with cable
Size without capacitor 55x30x11 mm

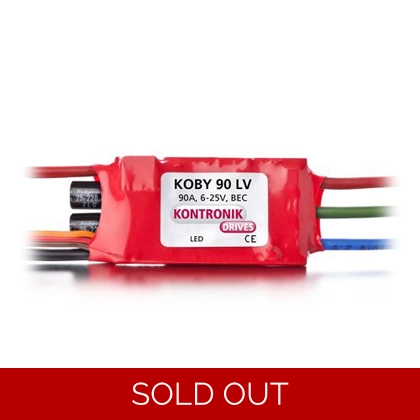

KOBY 90 LV

2-6 S LiPo, 6-25 V
90 A continuous current
100 A peak current
BEC 3 A continuous current
BEC 10 A peak current
45 g without cable
85 g with cable
Size without capacitor 55x30x11 mm
