Product Description
- 1.N48UH Magnets, 0.2mm Air gap, Coil with high copper space factor, Ultimate power.
- 2.Original NSK bearing,Low noise and friction factor, more stable and smooth.
- 3.The new type of propeller base is designed with more stable performance andmore convenient disassembly.
- 4.Around the stator end cover is hollowed design, and the heat dissipation area is increased, so the heat dissipation is better.
- 5.Hidden motor shaft design is adopted to protect motor shaft more effectively.
Specifications:

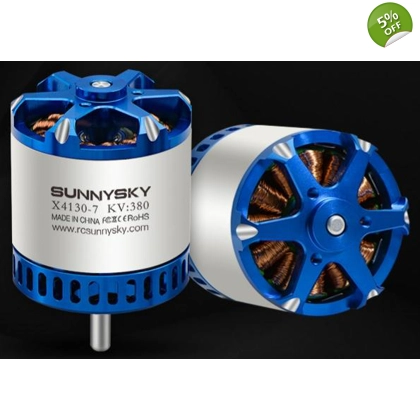

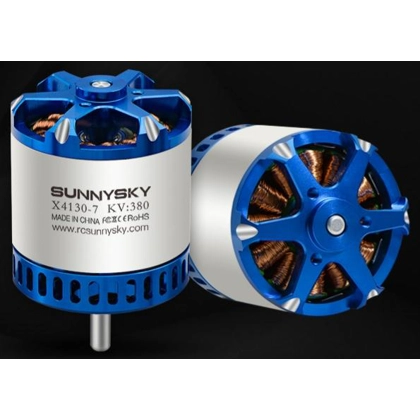

Model:X4130 Ⅲ
KV: 380KV
Stator Diameter:41mm
Stator thickness:30mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:1.5A/10V
Moter Resistance:20.9mΩ
Max Continuous Current:85A/30s
Max Continuous Power:2125W
Rotor diameter:49.7mm
Length of motor (excluding shaft length):59mm
Motor Size:49.7mm/1.94in x 80mm/3.12in
Max Lipo Cell:6S
Recommended ESC:80A
Recommended Prop(inch): 6S(16*8/16*10/APC17*8/APC17*10)
Weight:389g
420KV
Stator Diameter:41mm
Stator thickness:30mm
NO. of Statpr Arms:12
NO. of Roter Poles:14
NO-Load Current:2.5A/10V
Moter Resistance:12.9mΩ
Max Continuous Current:120A/30s
Max Continuous Power:3000W
Rotor diameter:49.7mm
Length of motor (excluding shaft length):59mm
Motor Size:49.7mm/1.94in x 80mm/3.12in
Max Lipo Cell:6S
Recommended ESC:120A
Recommended Prop(inch):6S(15*8/16*8)
Weight:399g
For 5s use with our 70 composite series planes choose the 520kv version with a 15*10 prop. For 6s choose the 390kv (16*12 prop) or the 420kv (16*10 prop)
